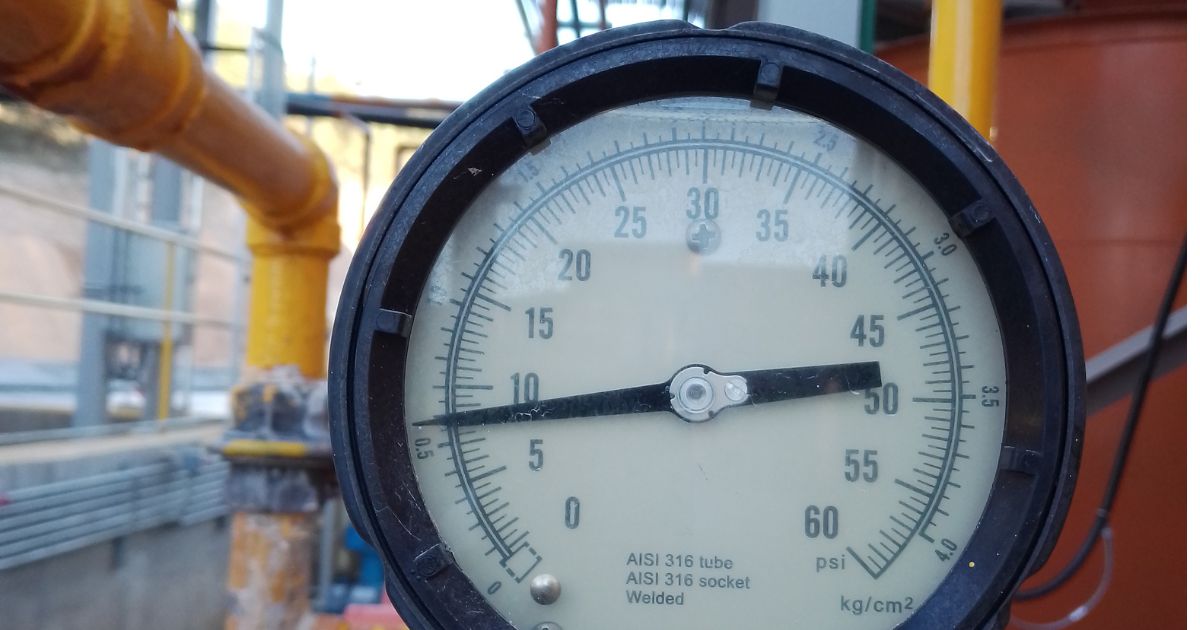

Industrial pump discharge pressure gauge during field inspection

A discharge gauge that reads "too low" triggers a chain of bad decisions — valve adjustments, speed changes, even premature pump replacement — if the number is misinterpreted. The gauge does not tell you whether the pump is healthy. It tells you where the pump and the system agreed to operate at that moment. Misreading that agreement costs downtime and money.

This article gives you a direct path from the gauge reading to the pump curve: how to convert pressure and head correctly, what shifts the reading, what causes abnormal values, and what to check before you change anything.

Key terms used in this article

– Discharge pressure: The gauge pressure measured at or near the pump discharge nozzle.

– Gauge pressure: Pressure referenced to local atmosphere — what a standard field gauge reads.

– Differential pressure: The difference between discharge and suction gauge pressures.

– Total head: Energy per unit weight the pump adds to the fluid, expressed in feet or meters of liquid.

– Specific gravity (s): Ratio of the pumped fluid's density to water's density at reference conditions.

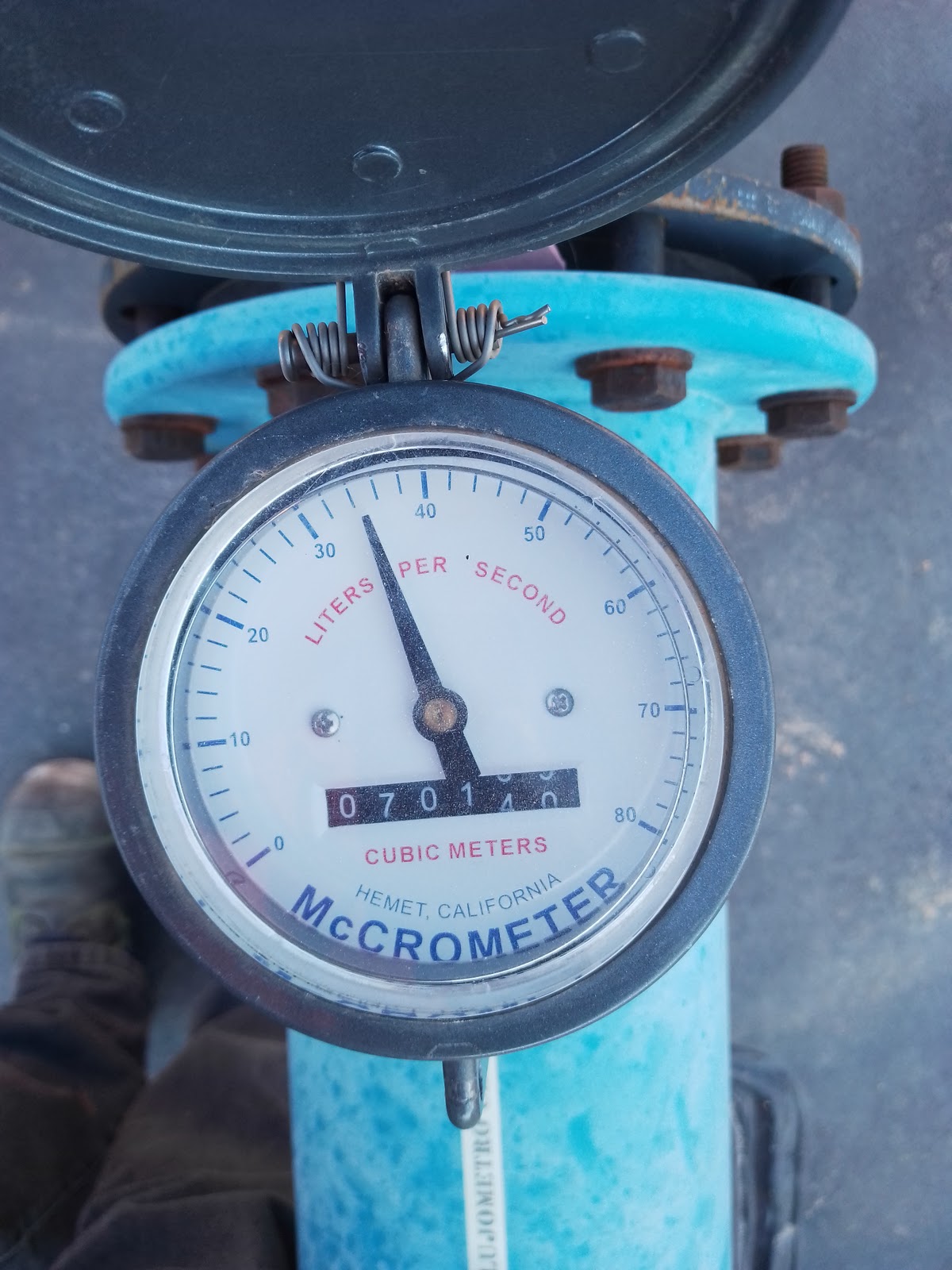

Flow meter gauge pump discharge

What Pump Discharge Pressure Tells You in Practice

Pump discharge pressure is not a design specification you can set independently. It is a symptom of the operating point — the intersection of the pump curve and the system curve at the current flow, speed, and fluid conditions.

A healthy reading means the pump is delivering the head the system demands at the flow the system allows. An abnormal reading means something changed: the system, the pump, or both.

Three facts keep gauge interpretation honest:

  • The gauge reads gauge pressure, not total head. Head includes suction conditions, velocity, and elevation corrections that the gauge does not see.
  • The same pump can show very different discharge pressures depending on fluid density, valve positions, and downstream static head.
  • A "normal" pressure from last month is only meaningful if nothing else in the system changed.

⚠️Warning: Adjusting pump speed or valve position based on a single discharge gauge reading — without confirming suction pressure, flow, and fluid properties — can push the pump to a dangerous operating point. Check the full picture before making changes.

How to Convert Head and Gauge Pressure Correctly

The pump curve is plotted in head (feet or meters), but your field gauge reads pressure (psi or kPa). Converting between them requires specific gravity.

Head to pressure:

$$p(\mathrm{psi}) = H(\mathrm{ft}) \times s / 2.31$$

Pressure to head:

$$H(\mathrm{ft}) = 2.31 \times p(\mathrm{psi}) / s$$

Where \(s\) is specific gravity:

$$s = \rho_{\mathrm{pumped\ fluid}} / \rho_{\mathrm{water}}$$

These conversions come from the Hydraulic Institute Data Tool (Eq. 1.A.1, 1.A.2) and are confirmed in the Xylem Bell & Gossett curve book.

Why specific gravity matters:

A pump delivering 100 ft of head produces 43.3 psi on water (\(s = 1.0\)), but only 34.6 psi on a light hydrocarbon at \(s = 0.80\). If you skip the SG correction, you will conclude the pump is underperforming — when it is doing exactly what the curve predicts.

Gauge location and velocity correction:

The gauge reads static pressure at the tap. If flow velocity at the gauge location is significant, the true pressure includes a velocity component:

$$p = p_{gauge} + 0.5 \rho v^2$$

in consistent units (Hydraulic Institute Data Tool, Eq. 1.A.4 to 1.A.6). For most installations with gauges on large-diameter pipe sections, velocity pressure is small. On compact skids or reduced nozzles, it can distort the reading by several psi.

💡Tip: Always record both suction and discharge gauge pressures, note gauge elevations relative to pump centerline, and confirm the fluid's SG at operating temperature before converting to head. A total dynamic head calculation requires all three.

Why the Operating Point Changes the Reading

Discharge pressure is not fixed by the pump — it is set by where the pump curve meets the system curve. Change either curve, and the reading moves.

The system head equation is:

$$\Delta h_{system} = \Delta h_{stat} + \Delta h_f$$

For a defined system curve with turbulent flow, friction losses scale with flow squared:

$$\Delta h_{system} = \Delta h_{stat} + KQ^2$$

(Hydraulic Institute Data Tool, Eq. 1.A.8 and Calc. 1.A.3(c))

What shifts the system curve:

  • Throttling a discharge valve raises \(K\), steepens the system curve, and pushes the operating point left — higher head, lower flow, higher discharge pressure.
  • Opening a valve or cleaning a strainer lowers \(K\), flattens the curve, and lets the pump run further right — lower head, higher flow, lower discharge pressure.
  • A rise in downstream tank level increases \(\Delta h_{stat}\) and shifts the entire system curve upward.

What shifts the pump curve:

The affinity laws describe how speed changes move the pump curve:

$$Q_2/Q_1 = n_2/n_1 \qquad H_2/H_1 = (n_2/n_1)^2 \qquad P_2/P_1 = (n_2/n_1)^3$$

(Hydraulic Institute Data Tool, Eq. 1.B.6a to 1.B.6c)

Reducing speed with a variable speed drive (VSD) pulls the entire pump curve down and to the left. The new operating point has lower flow and lower discharge pressure.

iNote: A 10% speed reduction drops head by roughly 19% and power by roughly 27%. The effect on discharge pressure is substantial — do not assume a small speed change is negligible.

What Causes Low Discharge Pressure

Low discharge pressure means the pump is producing less head than expected, the system is demanding less head than expected, or the gauge is lying. Walk through these categories before touching the pump.

Category Possible cause What to check
Pump-side Wrong rotation direction Confirm motor phase sequence; pump runs but delivers ~30% of rated head
  Worn impeller or wear rings Measure wear ring clearance; compare current head to original curve
  Air entrainment or partial loss of prime Check suction piping for leaks, vortexing, or gas pockets
Suction-side Insufficient NPSH available Run NPSH balance; listen for cavitation noise
  Clogged suction strainer Measure differential across strainer
  Low suction tank level Verify level against minimum submergence requirements
System-side Lower-than-expected system resistance Check for open bypass, missing orifice, or oversized pipe
  Incorrect gauge or gauge failure Swap gauge or cross-check with a calibrated portable gauge

🔴Caution: If discharge pressure drops suddenly and the pump becomes noisy with vibration spikes, suspect severe cavitation or loss of prime. Shut down and investigate before running further — continued operation can destroy the impeller and mechanical seal within hours.

What Causes High or Unstable Discharge Pressure

High discharge pressure is not a sign of a strong pump — it usually means the system is restricting flow and forcing the pump to operate far left on its curve.

High pressure causes:

  • Throttled or blocked discharge — A closed valve, plugged line, or blocked check valve pushes the operating point toward shutoff head.
  • Increased static head — A higher discharge tank level or pressurized vessel raises baseline system head.
  • Off-design operation far left of BEP — Low-flow operation produces high head but causes internal recirculation, high radial loads, and accelerated wear.

Unstable pressure causes:

  • Cavitation — Vapor bubble formation and collapse create rapid pressure fluctuations visible on the gauge.
  • Air entrainment — Intermittent air slugs cause erratic flow and pressure swings.
  • Fluctuating demand — Rapidly changing downstream loads shift the system curve continuously.
  • Check valve chatter — A partially failed or undersized check valve in a parallel pump arrangement can cause oscillation.

⚠️Warning: Operating at high discharge pressure with a throttled or blocked discharge generates heat in the casing and can cause thermal seizure of close-clearance parts. If the pump runs near shutoff for more than a few minutes, open a minimum-flow bypass or shut down.

How to Verify the Reading Against the Pump Curve

Before concluding that the pump is the problem, convert the field reading to head and compare it to the published curve. A mismatch may point to the system, not the pump.

Step-by-step field verification:

  1. Record pressures. Read discharge and suction gauges at stable flow. Note gauge elevations relative to pump centerline.
  2. Calculate differential head. Convert discharge and suction pressures to head using \(H = 2.31 \times p / s\). Subtract suction head from discharge head. Correct for gauge elevation difference and velocity head if pipe sizes differ at the taps.
  3. Measure or estimate flow. Use an installed meter, clamp-on ultrasonic, or infer from the pump curve and motor amps.
  4. Plot on the curve. Place the (flow, head) point on the OEM pump curve for the installed impeller diameter and speed.
  5. Interpret the result:
  • Point falls on the curve → The pump is healthy. The system is setting the operating point. Investigate system-side causes.
  • Point falls below the curve → The pump is degraded. Check wear rings, impeller condition, internal leakage, or air entrainment.
  • Point falls above the curve → Recheck your measurements. A point above a published curve usually indicates a measurement error, or the pump is running at higher speed than assumed.

💡Tip: Run this check at two or three different valve positions to trace the system curve shape. If the points form a parabolic path with a non-zero intercept, you can separate static head from friction head — which tells you whether a VSD will help. A quick duty-point diagnostic can guide that process.

What to Adjust First — and When to Escalate

Not every abnormal reading requires a pump rebuild. Use this decision sequence to avoid over-reacting.

📋Field checklist before changing the pump

  • ☐Confirm gauge accuracy — swap or cross-check with a calibrated instrument
  • ☐Verify fluid specific gravity at operating temperature
  • ☐Check suction conditions — tank level, strainer ΔP, suction valve position, NPSH margin
  • ☐Confirm discharge valve position and downstream system status
  • ☐Inspect for air leaks on the suction piping
  • ☐Measure wear ring clearance if accessible
  • ☐Compare the field operating point to the OEM curve

Decision guide:

Situation First action Escalation trigger
Reading matches curve but operating point is wrong for the process Adjust system — valve position, tank level, or setpoint If no valve or level adjustment restores the target, evaluate VSD or impeller trim
Reading is below the curve at measured flow Check wear rings, suction conditions, prime If clearance is double the OEM spec or impeller is visibly damaged, schedule rebuild
Pressure is unstable and pump is noisy Check NPSH margin, air entrainment, check valve condition If cavitation persists after suction-side corrections, the pump may need a lower-NPSHr hydraulic or a VSD to reduce flow
Pressure is high, flow is low, system is throttled Open the discharge path or reduce speed If the process permanently needs less flow, consider an impeller trim to match the duty

If your discharge pressure does not match the expected curve value after running through these checks, contact Dynapro for help reviewing the duty point, impeller and wear condition, and system resistance. A short field assessment can prevent costly trial-and-error adjustments.
